Estimation of oleic acid content in Brassica napus seeds based on hyperspectral data
Rong-cai TIAN, Jun-wei LU, Chun-yun GUAN
CHINESE JOURNAL OF OIL CROP SCIENCES ›› 2022, Vol. 44 ›› Issue (1) : 190-200.
Estimation of oleic acid content in Brassica napus seeds based on hyperspectral data
In order to find the most typical characteristics part of rapeseed on its oleic acid content hyperspectral estimating in Brassica napus L., 44 germplasm resources with high oleic acid content were used as materials. Spectral reflectance of seed and its oleic acid data were collected according to an order of main stem, primary branch, and secondary branch. The data were analyzed on relationship between seed oleic acid contents and original & first derivative spectral reflectance of different parts. Estimation model as stepwise multiple linear regression, partial least squares regression (PLSR), and principal component regression were established based on full wavelength and characteristic wavelength. Univariate linear regression model was established based on spectral index. And then, determination coefficient (R2), root mean square error (RMSE) and relative predicted deviation (RPD) were used to evaluate the accuracy of these models. Results showed that the PLSR model based on original spectral reflectance of the main stem had the best estimation effect in the full-wavelength model, with calibration set R2c 0.83 and RMSEc 1.63%, and validation set R2v 0.71, RMSEv 1.92%, and RPD 2.00. Among the characteristic wavelength models, PLSR model based on the first-order differential spectrum of the primary branches had the best estimation effects, with R2c 0.85 and R2v 0.87, RMSEc 1.08%, RMSEv 1.13%, and RPD 2.57. Among the estimation models constructed based on the spectra index, the RPD was less than 1.50 which prediction effect was poor. Therefore, the PLSR model based on the first derivative characteristic wavelengths might effectively estimate oleic acid content of the primary branches seeds. It also provided a sampling reference for spectral detection of oleic acid content in B. napus seeds with high oleic acid.
Brassica napus / high oleic acid / spectrum / branches / oleic acid content {{custom_keyword}} /
Table 1 Spectral index calculation formula表1 光谱指数的计算公式 |
光谱指数 Spectral index | 名称 Name | 公式 Formula |
---|---|---|
NDSI | 归一化差值光谱指数 Normalized difference spectral index | |
DSI | 差值光谱指数 Difference spectral index | |
RSI | 比值光谱指数 Ratio spectral index | |
Table 2 Oleic acid content in different parts of B. napus seeds表2 甘蓝型油菜不同部位的籽粒油酸含量 |
组别 Groups | 部位 Parts | 样本数 Number of samples | 最小值Min /% | 最大值 Max/% | 均值 Mean/% | 标准差 Standard deviation/% | 变异系数 CV/% |
---|---|---|---|---|---|---|---|
校正集 Calibration set | 主茎 Main stem | 30 | 72.99 | 87.60 | 83.76 | 3.94 | 4.70 |
一次分枝 Primary branches | 30 | 74.34 | 87.52 | 84.34 | 2.75 | 3.26 | |
二次分枝 Secondary branches | 30 | 74.96 | 87.37 | 83.48 | 2.98 | 3.57 | |
验证集 Validation set | 主茎 Main stem | 14 | 75.02 | 87.00 | 83.68 | 3.33 | 4.22 |
一次分枝 Primary branches | 14 | 76.51 | 87.40 | 84.06 | 3.06 | 3.64 | |
二次分枝 Secondary branches | 14 | 74.11 | 86.80 | 83.49 | 3.09 | 3.70 |

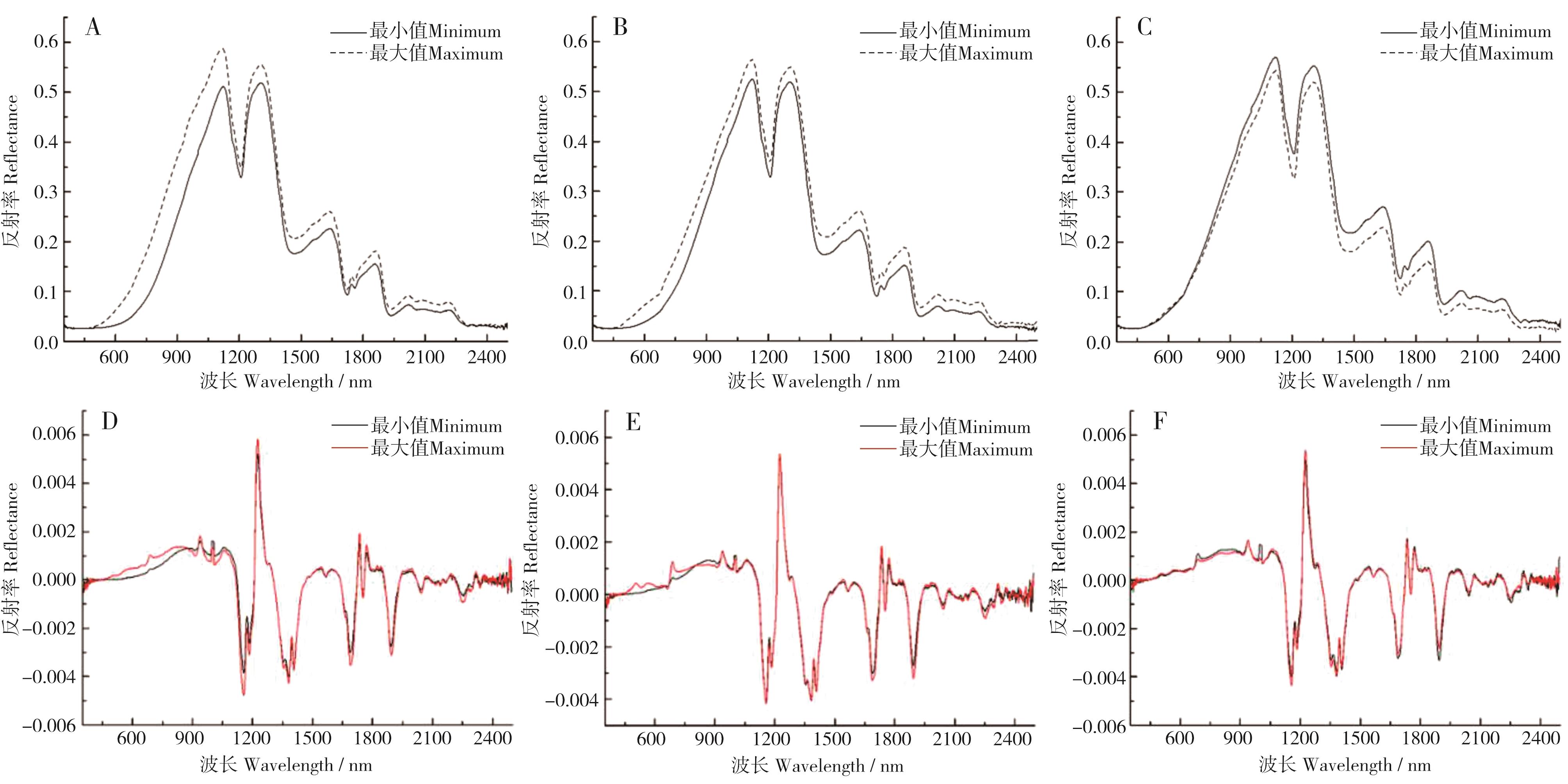

Fig. 1 Original and first derivative spectral reflectance curves corresponding to the maximum and minimum oleic acid content in B. napus seeds from different parts图1 甘蓝型油菜不同部位的油酸含量最大和最小值对应的原始及一阶微分光谱反射率曲线 |

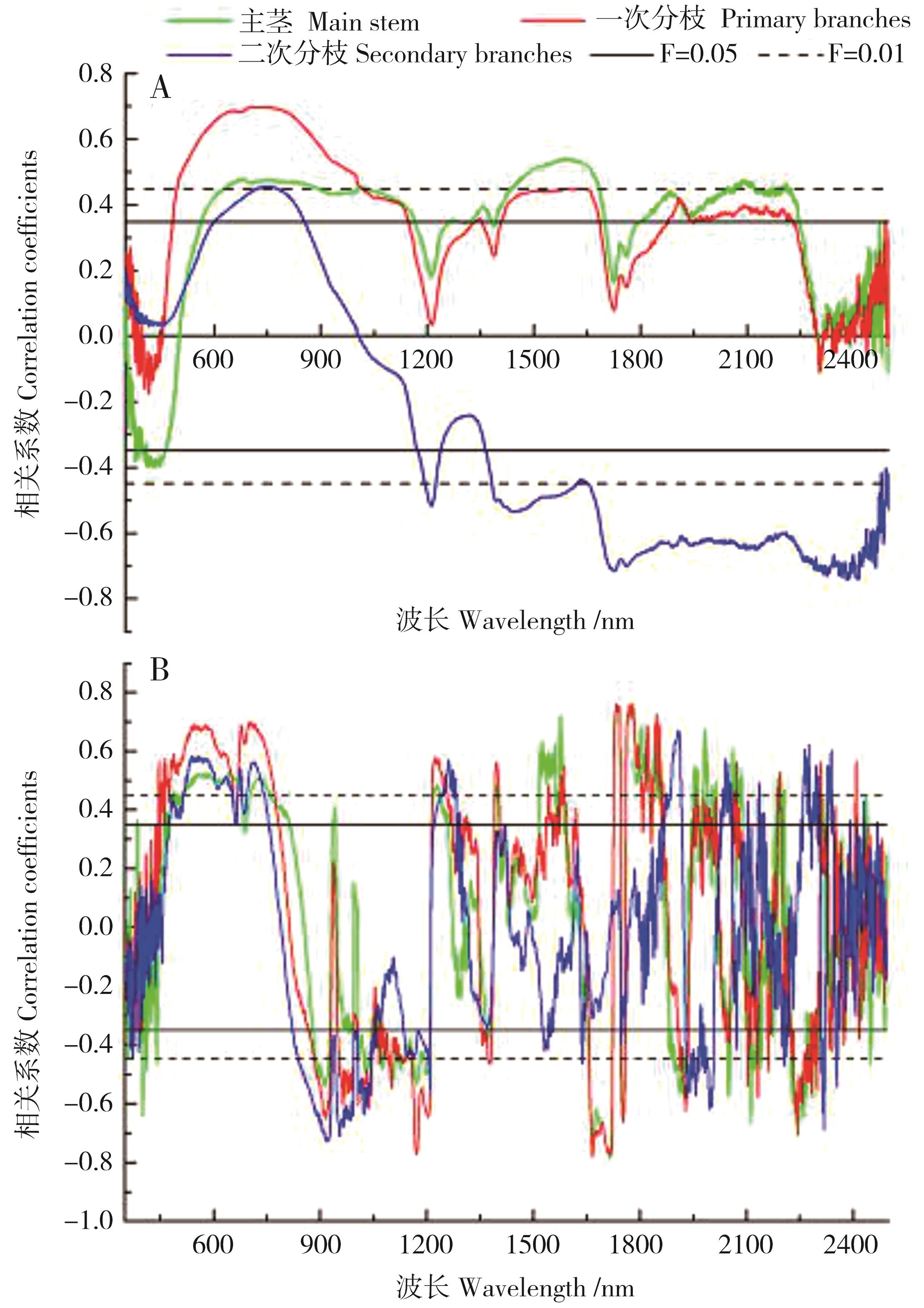

Fig. 2 Correlation coefficients between original and first derivative spectral reflectance and oleic acid content in B. napus seeds from different parts图2 甘蓝型油菜不同部位籽粒原始及一阶微分光谱与油酸含量相关系数 |
Table 3 Estimation of oleic acid content in B. napus seeds based on full wavelength表3 基于全波长的甘蓝型油菜籽粒油酸含量估测 |
光谱 Spectrum | 部位 Parts | 方法 Methods | R2 C | RMSEC/% | R2 V | RMSEV /% | RPD |
---|---|---|---|---|---|---|---|
原始 Original | 主茎 Main stem | SMLR | 0.84 | 1.74 | 0.56 | 3.82 | 1.01 |
PLSR | 0.83 | 1.63 | 0.71 | 1.92 | 2.00 | ||
PCR | 0.67 | 2.28 | 0.35 | 2.87 | 1.22 | ||
一次分枝 Primary branches | SMLR | 0.65 | 1.76 | 0.53 | 2.77 | 0.99 | |
PLSR | 0.76 | 1.35 | 0.54 | 2.09 | 1.11 | ||
PCR | 0.68 | 1.56 | 0.37 | 2.44 | 1.05 | ||
二次分枝 Secondary branches | SMLR | 0.85 | 1.28 | 0.47 | 3.19 | 0.82 | |
PLSR | 0.85 | 1.15 | 0.78 | 1.45 | 1.92 | ||
PCR | 0.58 | 1.93 | 0.45 | 2.28 | 1.11 | ||
一阶 First derivative | 主茎 Main stem | SMLR | 0.88 | 1.52 | 0.77 | 2.76 | 1.27 |
PLSR | 0.93 | 1.04 | 0.56 | 2.35 | 1.59 | ||
PCR | 0.66 | 2.30 | 0.13 | 3.31 | 1.03 | ||
一次分枝 Primary branches | SMLR | 0.87 | 0.98 | 0.55 | 2.45 | 1.29 | |
PLSR | 0.95 | 0.57 | 0.37 | 2.78 | 1.02 | ||
PCR | 0.47 | 1.82 | 0.35 | 2.82 | 1.05 | ||
二次分枝 Secondary branches | SMLR | 0.9 | 1.01 | 0.77 | 2.08 | 1.51 | |
PLSR | 0.88 | 1.03 | 0.61 | 1.93 | 1.34 | ||
PCR | 0.68 | 1.68 | 0.44 | 2.31 | 1.06 |
Table 4 Characteristic wavelengths表4 特征波长 |
光谱 Spectrum | 部位 Parts | 特征波长 Characteristic wavelengths /nm |
---|---|---|
原始 Original | 主茎 Main stem | 1119、1640、1858、2019、2213 |
一次分枝 Primary branches | 1119、1640、2020、2214 | |
二次分枝 Secondary branches | 1209、1641、1725、1760、1859、2020、2216 | |
一阶 First derivative | 主茎 Main stem | 912、938、1156、1184、1225、1396、1543、1566、1688、1734、1752、1770、1894、1989、2193、2253 |
一次分枝 Primary branches | 688、911、1058、1156、1184、1225、1382、1396、1543、1688、1734、1752、1770、2071、2191、2251 | |
二次分枝 Secondary branches | 688、912、938、1156、1184、1225、1894、1988、2042、2317、2337、2354 |

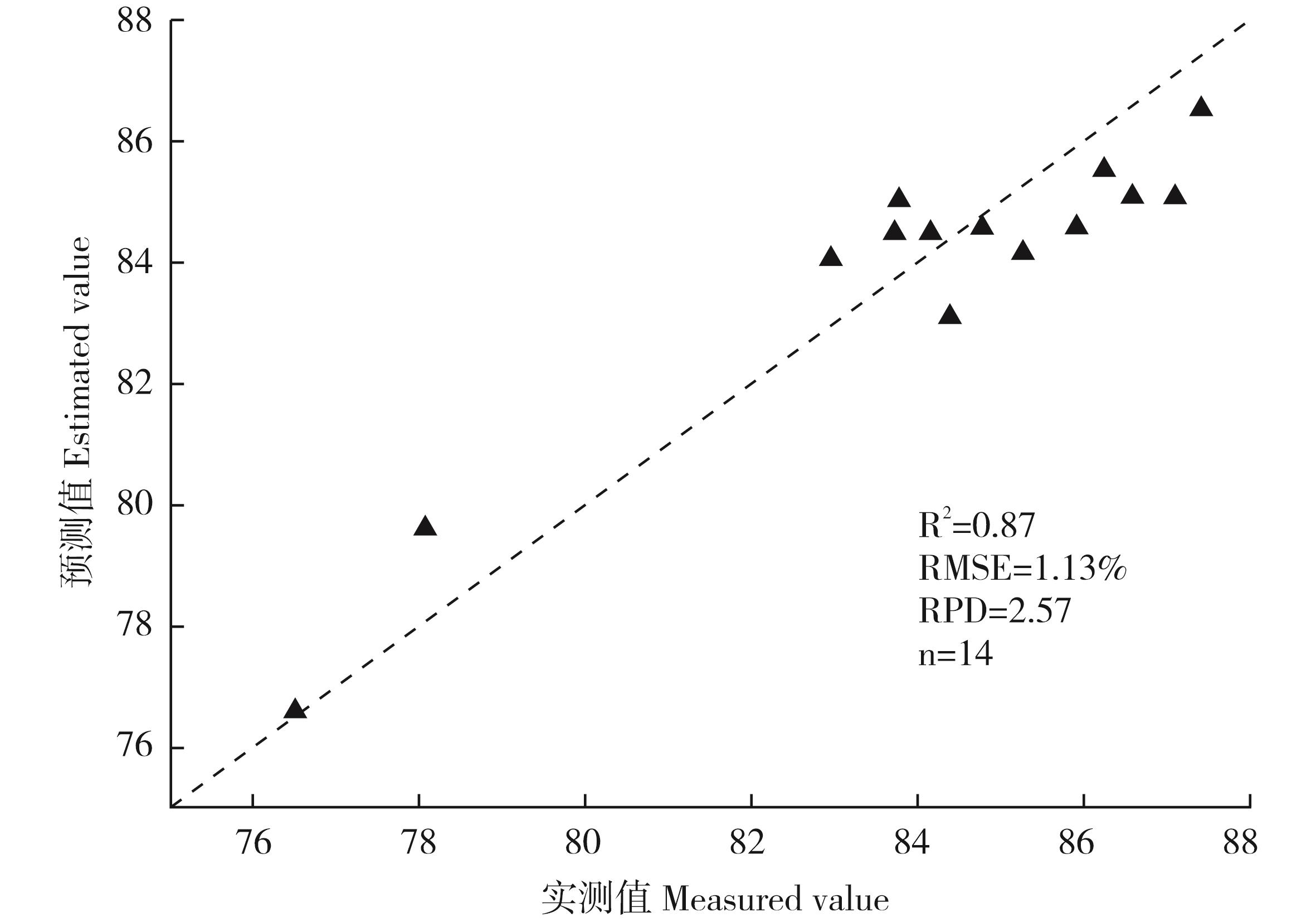

Table 5 Estimation of oleic acid content in different parts of B.napus seeds based on characteristic wavelengths表5 基于特征波长的甘蓝型油菜不同部位籽粒油酸含量估测 |
光谱 Spectrum | 部位 Parts | 方法 Methods | R2 C | RMSEC/% | R2 V | RMSEV/% | RPD |
---|---|---|---|---|---|---|---|
原始 Original | 主茎 Main stem | SMLR | 0.44 | 3.11 | 0.49 | 4.11 | 0.86 |
PLSR | 0.25 | 3.40 | NA | 4.33 | 0.71 | ||
PCR | 0.24 | 3.42 | NA | 4.30 | 0.71 | ||
一次分枝 Primary branches | SMLR | 0.31 | 2.40 | 0.25 | 3.48 | 0.72 | |
PLSR | 0.20 | 2.47 | NA | 3.23 | 0.73 | ||
PCR | 0.19 | 2.47 | NA | 3.23 | 0.73 | ||
二次分枝 Secondary branches | SMLR | 0.59 | 2.00 | 0.79 | 2.00 | 1.28 | |
PLSR | 0.67 | 1.71 | 0.61 | 1.93 | 1.37 | ||
PCR | 0.67 | 1.71 | 0.61 | 1.93 | 1.36 | ||
一阶 First derivative | 主茎 Main stem | SMLR | 0.71 | 2.26 | 0.59 | 3.68 | 0.98 |
PLSR | 0.84 | 1.58 | 0.51 | 2.49 | 1.43 | ||
PCR | 0.73 | 2.06 | 0.48 | 2.56 | 1.49 | ||
一次分枝 Primary branches | SMLR | 0.64 | 1.73 | 0.57 | 2.63 | 1.01 | |
PLSR | 0.85 | 1.08 | 0.87 | 1.13 | 2.57 | ||
PCR | 0.46 | 2.02 | 0.37 | 2.43 | 1.12 | ||
二次分枝 Secondary branches | SMLR | 0.63 | 1.92 | 0.59 | 2.80 | 0.89 | |
PLSR | 0.45 | 2.20 | 0.47 | 2.25 | 1.07 | ||
PCR | 0.57 | 1.96 | 0.45 | 2.28 | 1.07 |

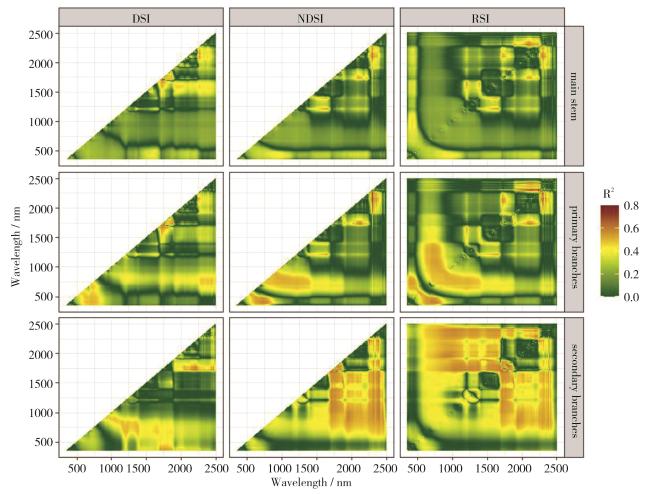

Table 6 Estimation of oleic acid content in different parts of B.napus based on spectral index表6 基于光谱指数的甘蓝型油菜不同部位籽粒油酸含量估测 |
部位Parts | 光谱指数 Spectral index | 估测模型 Estimation model | R2 C | RMSEC /% | R2 V | RMSEV /% | RPD |
---|---|---|---|---|---|---|---|
主茎 Main stem | DSI(1767,1766) | y=31925ⅹ+36.131 | 0.65 | 2.34 | 0.16 | 4.16 | 0.91 |
NDSI(2305,2117) | y=150.5ⅹ+20.642 | 0.67 | 2.25 | 0.27 | 3.6 | 1.06 | |
RSI(2117,2305) | y=-147.21ⅹ+144.02 | 0.67 | 2.25 | 0.28 | 3.55 | 1.06 | |
一次分枝 Primary branches | DSI(1757,1701) | y=2225.3ⅹ+46.37 | 0.69 | 1.54 | 0.57 | 2.03 | 1.35 |
NDSI(2304,2254) | y=110.65ⅹ+52.22 | 0.78 | 1.28 | 0.24 | 2.76 | 0.99 | |
RSI(2254,2304) | y=-89.977ⅹ+133.87 | 0.79 | 1.28 | 0.24 | 2.75 | 0.99 | |
二次分枝 Secondary branches | DSI(2471,1726) | y=-290.89ⅹ+105.64 | 0.62 | 1.84 | 0.49 | 2.33 | 1.08 |
NDSI(2239,2199) | y=555.44ⅹ+64.976 | 0.71 | 1.62 | 0.39 | 2.54 | 1.15 | |
RSI(2199,2239) | y=-294.64ⅹ+359.14 | 0.71 | 1.61 | 0.39 | 2.54 | 1.16 |
