QTL mapping and candidate genes identification for flowering time of soybean

doi:10.19802/j.issn.1007-9084.2021101

Abstract

Abstract:

Soybean is sensitive to photoperiod, and the cultivation area of each soybean variety is restricted to a very narrow latitudinal range. The adaptability of soybean between different latitudes is closely related to flowering time. In order to excavate the genes controlling flowering time of soybean, we performed QTL mapping for flowering time by using recombinant inbred line (RIL) population derived from Huapidou × Qihuang 26 cross and high-density linkage map constructed based on specific length amplified fragment sequencing (SLAF-seq). In total, 11 QTLs were identified on 7 chromosomes. Of them, 4 QTLs (qFT8, qFT20-2, qFT14 and qFT16) were newly identified in this study. Furthermore, 6 QTLs (qFT6-1, qFT8, qFT11-1, qFT19, qFT20-1 and qFT20-2) exist stably in 2 environments. By performing the sequences and bioinformatics analysis of genes between 6 stable QTL intervals, 4 candidate genes related to flowering time regulation had been identified. The results of this research were expected to provide a foundation for understanding the molecular mechanism of soybean adaptability and cultivating the varieties with wide adaptability.

Key words: soybean, flowering time, QTL, candidate genes identification

CLC Number:

S565.1

Wei LIU, Yu-bin WANG, Wei LI, Li-feng ZHANG, Cai-jie WANG, Ran XU, Hai-ying DAI, Yan-wei ZHANG. QTL mapping and candidate genes identification for flowering time of soybean[J]. CHINESE JOURNAL OF OIL CROP SCIENCES, 2022, 44(3): 548-554.

Figures/Tables 7

Table 1

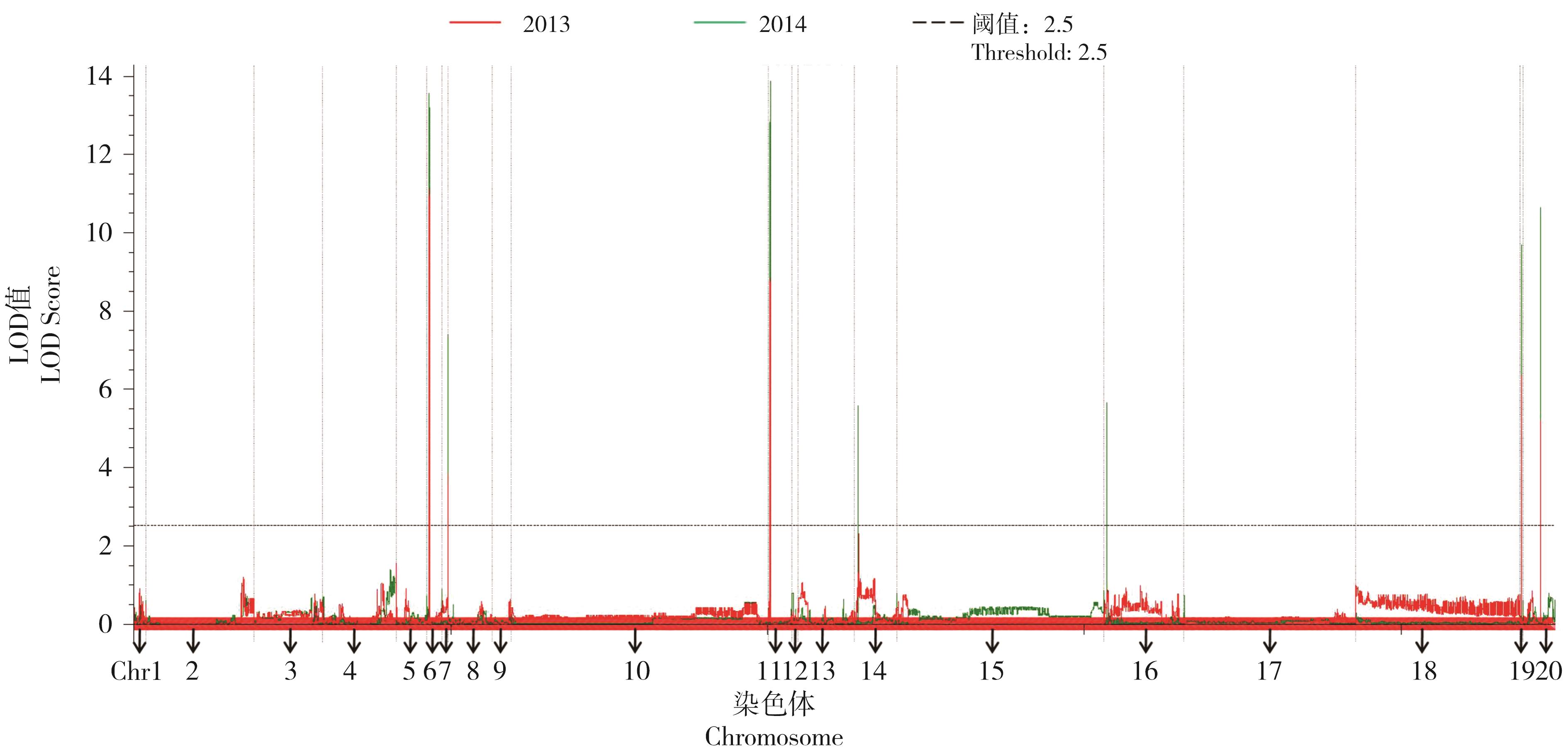

Fig. 1

Fig. 2

Table 2

Table 3

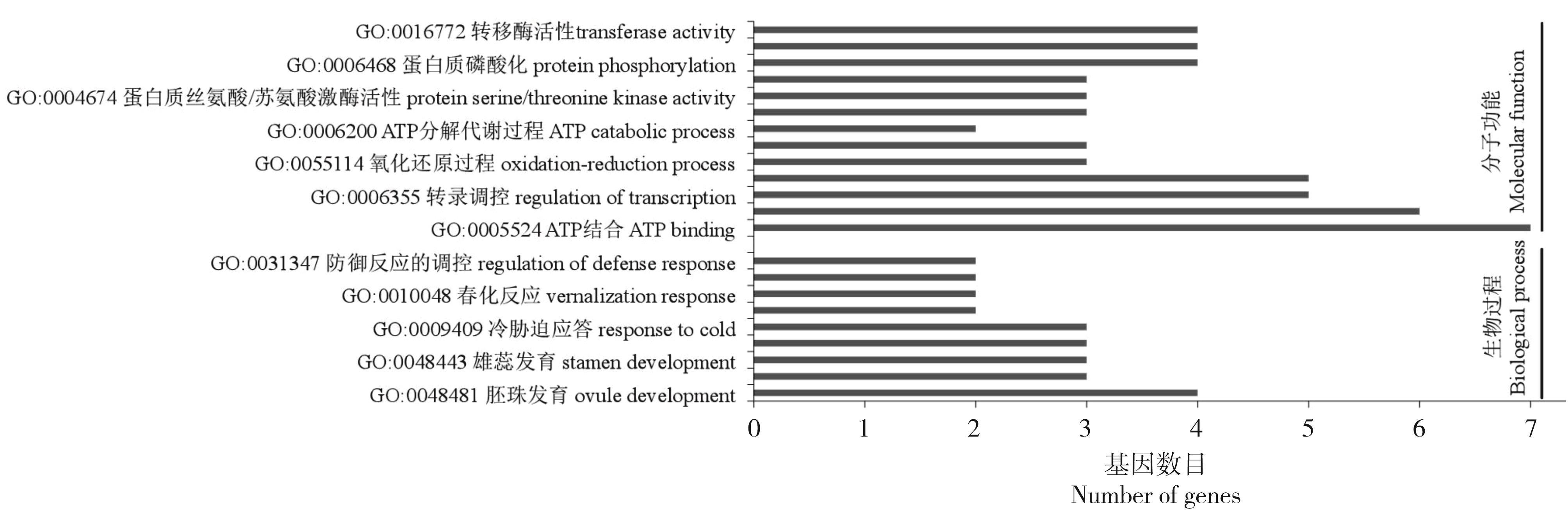

Fig. 3

Table 4

References 23

1	Cober E R， Stewart D W， Voldeng H D. Photoperiod and temperature responses in early-maturing， near-isogenic soybean lines［J］. Crop Sci， 2001， 41（3）： 721-727. DOI：10.2135/cropsci2001.413721x . doi: 10.2135/cropsci2001.413721x
2	王金陵，武镛祥，吴和礼，等. 中国南北地区大豆光照生态类型的分析［J］. 农业学报. 1956， 7（2）： 169-180.
3	Lin X Y， Liu B H， Weller J L， et al. Molecular mechanisms for the photoperiodic regulation of flowering in soybean［J］. J Integr Plant Biol， 2021. DOI：10.1111/jipb.13021 . doi: 10.1111/jipb.13021
4	Xia Z， Watanabe S， Yamada T， et al. Positional cloning and characterization reveal the molecular basis for soybean maturity locus E1 that regulates photoperiodic flowering［J］. PNAS， 2012， 109（32）： E2155-E2164. DOI：10.1073/pnas.1117982109 . doi: 10.1073/pnas.1117982109
5	Watanabe S， Xia Z， Hideshima R， et al. A map-based cloning strategy employing a residual heterozygous line reveals that the GIGANTEA gene is involved in soybean maturity and flowering［J］. Genetics， 2011， 188（2）： 395-407. DOI：10.1534/genetics.110.125062 . doi: 10.1534/genetics.110.125062
6	Watanabe S， Hideshima R， Xia Z， et al. Map-based cloning of the gene associated with the soybean maturity locus E3［J］. Genetics， 2009， 182（4）： 1251-1262. DOI：10.1534/genetics.108.098772 . doi: 10.1534/genetics.108.098772
7	Liu B， Kanazawa A， Matsumura H， et al. Genetic redundancy in soybean photoresponses associated with duplication of the phytochrome A gene［J］. Genetics， 2008， 180（2）： 995-1007. DOI：10.1534/genetics.108.092742 . doi: 10.1534/genetics.108.092742
8	Kong F， Liu B， Xia Z， et al. Two coordinately regulated homologs of FLOWERING LOCUS T are involved in the control of photoperiodic flowering in soybean［J］. Plant Physiol， 2010， 154（3）： 1220-1231. DOI：10.1104/pp.110.160796 . doi: 10.1104/pp.110.160796
9	Jiang B， Nan H， Gao Y， et al. Allelic combinations of soybean maturity loci E1， E2， E3 and E4 result in diversity of maturity and adaptation to different latitudes［J］. PLoS One， 2014， 9（8）： e106042. DOI：10.1371/journal.pone.0106042 . doi: 10.1371/journal.pone.0106042
10	Zhai H， Lü S， Wang Y， et al. Allelic variations at four major maturity E genes and transcriptional abundance of the E1 gene are associated with flowering time and maturity of soybean cultivars［J］. PLoS One， 2014， 9（5）： e97636. DOI：10.1371/journal.pone.0097636 . doi: 10.1371/journal.pone.0097636
11	Zhang Y， Li W， Lin Y， et al. Construction of a high-density genetic map and mapping of QTLs for soybean （Glycine max） agronomic and seed quality traits by specific length amplified fragment sequencing［J］. BMC Genomics， 2018， 19（1）： 641. DOI：10.1186/s12864-018-5035-9 . doi: 10.1186/s12864-018-5035-9
12	Jun T H， Freewalt K， Michel A P， et al. Identification of novel QTL for leaf traits in soybean［J］. Plant Breeding， 2014， 133（1）： 61-66. DOI：10.1111/pbr.12107 . doi: 10.1111/pbr.12107
13	Yamanaka N， Ninomiya S， Hoshi M， et al. An informative linkage map of soybean reveals QTLs for flowering time， leaflet morphology and regions of segregation distortion［J］. DNA Res， 2001， 8（2）： 61-72. DOI：10.1093/dnares/8.2.61 . doi: 10.1093/dnares/8.2.61
14	Komatsu K， Okuda S， Takahashi M， et al. Quantitative trait loci mapping of pubescence density and flowering time of insect-resistant soybean （Glycine max L. Merr.）［J］. Genet Mol Biol， 2007， 30（3）： 635-639. DOI：10.1590/s1415-47572007000400022 . doi: 10.1590/s1415-47572007000400022
15	Khan N A， Githiri S M， Benitez E R， et al. QTL analysis of cleistogamy in soybean［J］. Theor Appl Genet， 2008， 117（4）： 479-487. DOI：10.1007/s00122-008-0792-5 . doi: 10.1007/s00122-008-0792-5
16	Lee S， Lee S， Yang K Y， et al. Overexpression of PRE1 and its homologous genes activates gibberellin-dependent responses in Arabidopsis thaliana ［J］. Plant Cell Physiol， 2006， 47（5）： 591-600. DOI：10.1093/pcp/pcj026 . doi: 10.1093/pcp/pcj026
17	Greb T， Mylne J S， Crevillen P， et al. The PHD finger protein VRN5 functions in the epigenetic silencing of Arabidopsis FLC［J］. Curr Biol， 2007， 17（1）： 73-78. DOI：10.1016/j.cub.2006.11.052 . doi: 10.1016/j.cub.2006.11.052
18	Pal S K， Liput M， Piques M， et al. Diurnal changes of polysome loading track sucrose content in the rosette of wild-type Arabidopsis and the starchless pgm mutant［J］. Plant Physiol， 2013， 162（3）： 1246-1265. DOI：10.1104/pp.112.212258 . doi: 10.1104/pp.112.212258
19	Yu T S， Lue W L， Wang S M， et al. Mutation of Arabidopsis plastid phosphoglucose isomerase affects leaf starch synthesis and floral initiation［J］. Plant Physiol， 2000， 123（1）： 319-326. DOI：10.1104/pp.123.1.319 . doi: 10.1104/pp.123.1.319
20	Dorca-Fornell C， Gregis V， Grandi V， et al. The Arabidopsis SOC1-like genes AGL42， AGL71 and AGL72 promote flowering in the shoot apical and axillary meristems［J］. Plant J， 2011， 67（6）： 1006-1017. DOI：10.1111/j.1365-313x.2011.04653.x . doi: 10.1111/j.1365-313x.2011.04653.x
21	Wang H， Li Y， Pan J， et al. The bHLH transcription factors MYC2， MYC3， and MYC4 are required for jasmonate-mediated inhibition of flowering in Arabidopsis ［J］. Mol Plant， 2017， 10（11）： 1461-1464. DOI：10.1016/j.molp.2017.08.007 . doi: 10.1016/j.molp.2017.08.007
22	Liu Y W， Li X， Li K W， et al. Multiple bHLH proteins form heterodimers to mediate CRY2-dependent regulation of flowering-time in Arabidopsis ［J］. PLoS Genet， 2013， 9（10）： e1003861. DOI：10.1371/journal.pgen.1003861 . doi: 10.1371/journal.pgen.1003861
23	Sharma N， Xin R， Kim D H， et al. NO FLOWERING IN SHORT DAY （NFL） is a bHLH transcription factor that promotes flowering specifically under short-day conditions in Arabidopsis ［J］. Development， 2016， 143（4）： 682-690. DOI：10.1242/dev.128595 . doi: 10.1242/dev.128595

QTL	环境 Environments	染色体 Chromosome	标记间距离 Interval /cM	LOD	PVE /%	Add	已报道的QTL Reported QTL
qFT6-1	2013	6	73.65~73.65	10.92	8.25	1.41	First flower26-2^［12］
qFT6-1	2014	6	73.65~73.65	13.55	7.13	1.24	First flower26-2^［12］
qFT8	2013	8	0.00~0.69	3.83	1.75	0.65
qFT8	2014	8	0.00~0.69	7.37	2.58	0.75
qFT11-1	2013	11	66.96~67.44	8.75	7.17	-1.34	First flower8-4^［13］
qFT11-1	2014	11	66.96~67.44	12.95	6.74	-1.22	First flower8-4^［13］
qFT19	2013	19	35.14~36.50	6.33	4.40	1.03	First flower15-2^［14］
qFT19	2014	19	35.14~36.50	9.69	4.69	1.00	First flower15-2^［14］
qFT20-1	2013	20	113.99~114.33	4.96	4.29	1.04	First flower16-3^［15］
qFT20-1	2014	20	113.99~114.33	10.64	6.85	1.23	First flower16-3^［15］
qFT20-2	2013	20	114.33~114.66	5.18	4.39	1.05
qFT20-2	2014	20	114.33~114.66	10.65	6.79	1.23
qFT6-2	2013	6	68.71~73.65	11.01	8.04	1.39	First flowe26-2^［12］
qFT11-2	2013	11	65.87~66.96	8.84	7.39	-1.36	First flower8-4^［13］
qFT11-3	2014	11	67.44~68.26	12.63	6.67	-1.21	First flower8-4^［13］
qFT14	2014	14	48.62~48.75	5.58	4.38	-0.98
qFT16	2014	16	62.43~65.28	5.65	3.08	-0.81
