Construction of high density genetic map and QTL mapping of yield related traits in soybean

doi:10.19802/j.issn.1007-9084.2021268

Abstract

Abstract:

To accelerate molecular marker-assisted breeding for soybean, a recombinant inbred lines （RILs） population （F_2:10） containing 168 lines was constructed from Dongnong 42 and Dongnong 50 for constructing a high density genetic map. The two parents are significantly different on yield. QTL analysis was carried out by using the compound interval mapping （CIM） method of R/qtl software combined with phenotypic data on yield-related traits at 6 environments in 2 years. Results showed that 660 316 SNP markers obtained by sequencing could be used to construct a high-density genetic map of soybean containing 6227 bin markers distributed in 20 linkage groups. The general and average map distances were 2739.15 cM and 0.44 cM respectively. 22 QTLs related to yield traits were mapped on 12 chromosomes. QTLs for number of four-seed-pod （NFSP）, number of pods per plant （NPPP）, seed weight per plant （SWPP）, 100-seed weight （HSW） were 5, 4, 5 and 8 respectively. There was a genomic region on each of the chromosomes 3 and 19. They were repeatedly located in 2 years, involving 6 major QTLs, namely qNFSP-19-1 （22.976%）, qNFSP-19-2 （11.977%）, qNFSP-19-3 （17.203%）, qHSW-3-1 （11.346%）, qHSW-3-2 （11.346%） and qHSW-3-3 （11.175%）, all these QTLs had negative additive effects. 7 QTLs for yield-related traits were newly mapped on chromosomes 3, 7, 11, 12 and 20, among which qHSW-3-3 （14.276%） had the highest phenotypic contribution, including qHSW-3-2 and qHSW-3-3 with repetitive mapping intervals. Compared with the results of previous co-mapping, more QTLs greatly shortened the mapping interval, which showed the accuracy of the high-density genetic map constructed in this study.

Key words: soybean, high density genetic map, number of four-seed-pod, pods per plant, seed weight per plant, 100-seed weight, QTL

CLC Number:

S565.1

Bo WANG, Ying-ying DONG, Xue FU, He-yu LIU, Xiang-chao ZHANG, Ji LIU, Fei-fei SHI, Xue ZHAO, Ying-peng HAN, Wen-bin LI, Wei-li TENG. Construction of high density genetic map and QTL mapping of yield related traits in soybean[J]. CHINESE JOURNAL OF OIL CROP SCIENCES, 2022, 44(6): 1228-1238.

Figures/Tables 9

Table 1

Table 2

Table 3

Table 4

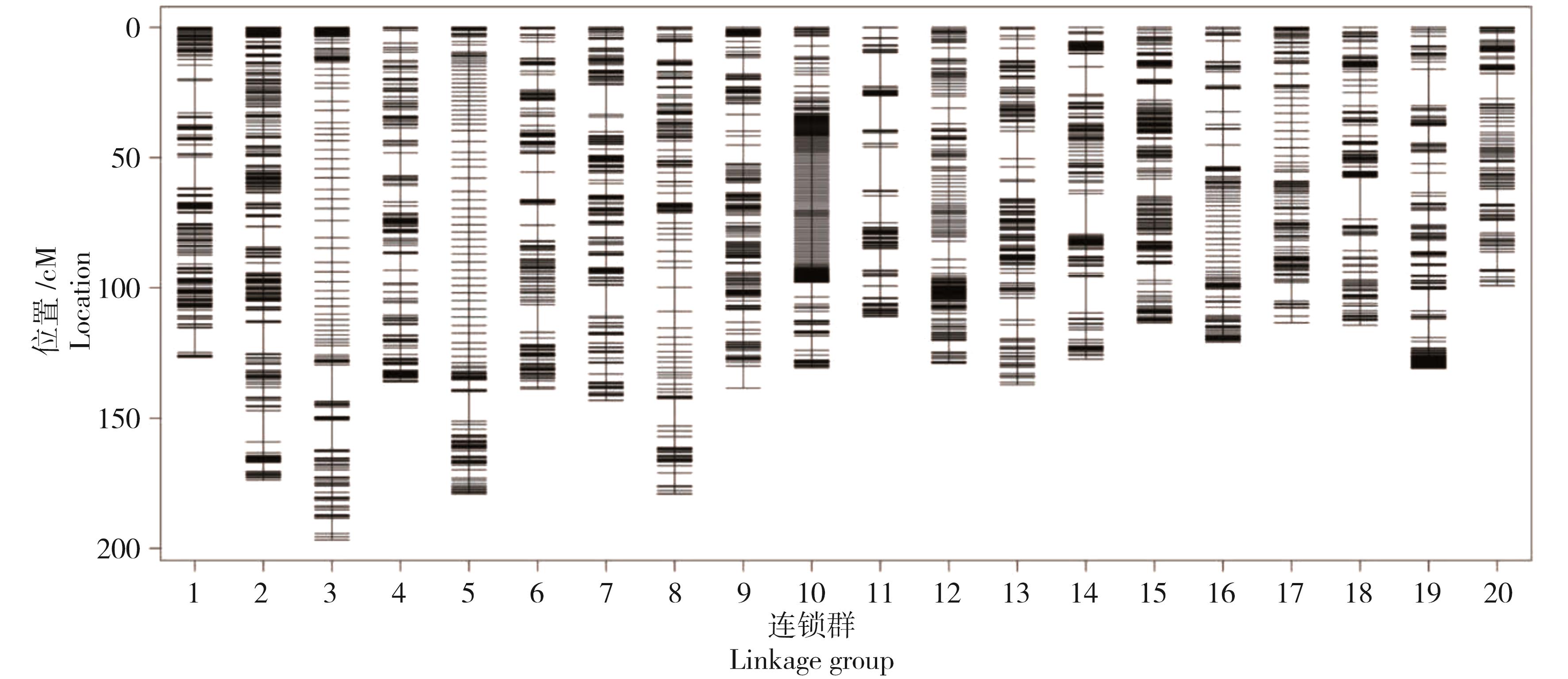

Fig. 1

Table 5

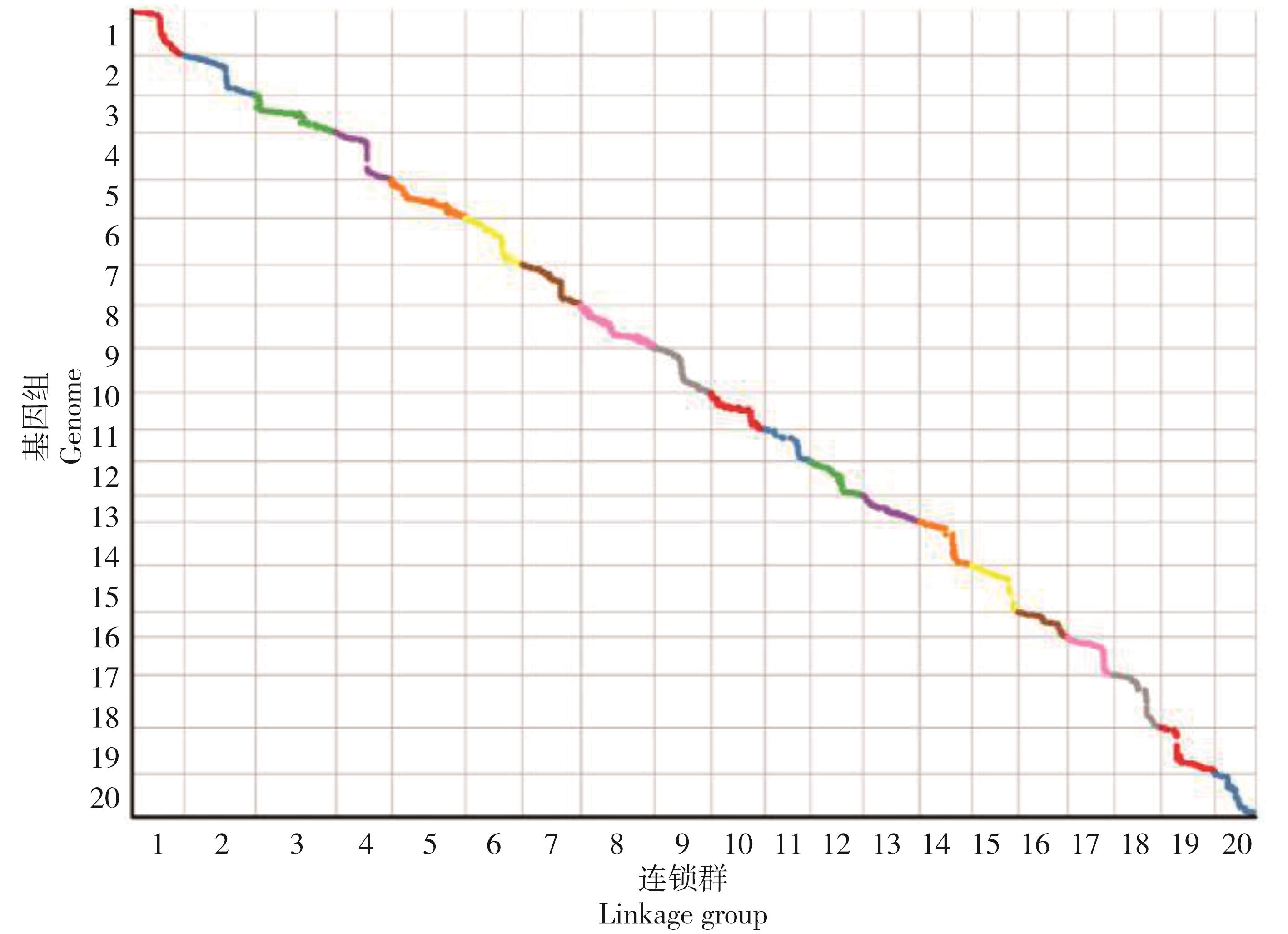

Fig. 2

Table 6

Table 7

References 42

1	杜维广，盖钧镒. 大豆超高产育种研究进展的讨论［J］. 土壤与作物， 2014， 3（3）： 81-92. DOI：10.11689/j.issn.2095-2961.2014.03.001 . doi: 10.11689/j.issn.2095-2961.2014.03.001
2	Chen Q S， Zhang Z C， Liu C Y， et al. QTL analysis of major agronomic traits in soybean［J］. Agric Sci China， 2007， 6（4）： 399-405. DOI：10.1016/S1671-2927（07）60062-5 . doi: 10.1016/S1671-2927（07）60062-5
3	Liu D Q， Yan Y L， Fujita Y， et al. Identification and validation of QTLs for 100-seed weight using chromosome segment substitution lines in soybean［J］. Breed Sci， 2018， 68（4）： 442-448. DOI：10.1270/jsbbs.17127 . doi: 10.1270/jsbbs.17127
4	Specht J E， Hume D J， Kumudini S V. Soybean yield potential-A genetic and physiological perspective［J］. Crop Sci， 1999， 39（6）： 1560-1570. DOI：10.2135/cropsci1999.3961560x . doi: 10.2135/cropsci1999.3961560x
5	陈欢，张文英，樊龙江. 作物育种方法研究进展与展望［J］. 科技通报， 2011， 27（1）： 61-65. DOI：10.13774/j.cnki.kjtb.2011.01.019 . doi: 10.13774/j.cnki.kjtb.2011.01.019
6	张芳，谢皓，陈学珍. 大豆分子标记辅助育种研究进展［J］. 北京农学院学报， 2010， 25（2）： 73-77. DOI：10.13473/j.cnki.issn.1002-3186.2010.02.006 . doi: 10.13473/j.cnki.issn.1002-3186.2010.02.006
7	Hoeck J A， Fehr W R， Shoemaker R C， et al. Molecular marker analysis of seed size in soybean［J］. Crop Sci， 2003， 43（1）： 68. DOI：10.2135/cropsci2003.6800 . doi: 10.2135/cropsci2003.6800
8	Fu S X， Zhan Y， Zhi H J， et al. Mapping of SMV resistance gene Rsc-7 by SSR markers in soybean［J］. Genetica， 2006， 128（1/2/3）： 63-69. DOI：10.1007/s10709-005-5535-9 . doi: 10.1007/s10709-005-5535-9
9	Qi Z M， Hou M， Han X， et al. Identification of quantitative trait loci （QTLs） for seed protein concentration in soybean and analysis for additive effects and epistatic effects of QTLs under multiple environments［J］. Plant Breeding， 2014， 133（4）： 499-507. DOI：10.1111/pbr.12179 . doi: 10.1111/pbr.12179
10	Lee S， Freewalt K R， McHale L K， et al. A high-resolution genetic linkage map of soybean based on 357 recombinant inbred lines genotyped with BARCSoySNP6K［J］. Mol Breed， 2015， 35（2）： 1-7. DOI：10.1007/s11032-015-0209-5 . doi: 10.1007/s11032-015-0209-5
11	Pawlowski M L， Vuong T D， Valliyodan B， et al. Whole-genome resequencing identifies quantitative trait loci associated with mycorrhizal colonization of soybean［J］. Theor Appl Genet， 2020， 133（2）： 409-417. DOI：10.1007/s00122-019-03471-5 . doi: 10.1007/s00122-019-03471-5
12	Boudhrioua C， Bastien M， Torkamaneh D， et al. Genome-wide association mapping of Sclerotinia sclerotiorum resistance in soybean using whole-genome resequencing data［J］. BMC Plant Biol， 2020， 20（1）： 195. DOI：10.1186/s12870-020-02401-8 . doi: 10.1186/s12870-020-02401-8
13	郝德荣. 大豆产量相关性状QTL的关联分析及候选基因GmGA3ox单倍型鉴定［D］. 南京：南京农业大学， 2011.
14	Yao D， Liu Z Z， Zhang J， et al. Analysis of quantitative trait loci for main plant traits in soybean［J］. Genet Mol Res， 2015， 14（2）： 6101-6109. DOI：10.4238/2015.June.8.8 . doi: 10.4238/2015.June.8.8
15	韩英鹏，栗春霞，赵雪，等. 大豆产量相关性状QTL定位［J］. 东北农业大学学报， 2020， 51（11）： 1-10. DOI：10.19720/j.cnki.issn.1005-9369.2020.11.01 . doi: 10.19720/j.cnki.issn.1005-9369.2020.11.01
16	Shim S， Kim M Y， Ha J， et al. Identification of QTLs for branching in soybean （Glycine max （L.） Merrill）［J］. Euphytica， 2017， 213（9）： 1-9. DOI：10.1007/s10681-017-2016-z . doi: 10.1007/s10681-017-2016-z
17	Karikari B， Chen S X， Xiao Y T， et al. Utilization of interspecific high-density genetic map of RIL population for the QTL detection and candidate gene mining for 100-seed weight in soybean［J］. Front Plant Sci， 2019， 10： 1001. DOI：10.3389/fpls.2019.01001 . doi: 10.3389/fpls.2019.01001
18	Broman K W， Wu H， Sen S， et al. R/qtl： QTL mapping in experimental crosses［J］. Bioinformatics， 2003， 19（7）： 889-890. DOI：10.1093/bioinformatics/btg112 . doi: 10.1093/bioinformatics/btg112
19	邱丽娟，常汝镇. 大豆种质资源描述规范和数据标准［M］. 北京：中国农业出版社， 2006.
20	喻志学，魏彩姣，李艺萌，等. 转基因大豆DNA提取方法研究［J］. 广东化工， 2016， 43（18）： 23-24. DOI：10.3969/j.issn.1007-1865.2016.18.010 . doi: 10.3969/j.issn.1007-1865.2016.18.010
21	Li H， Durbin R. Fast and accurate short read alignment with Burrows-Wheeler transform［J］. Bioinformatics， 2009， 25（14）： 1754-1760. DOI：10.1093/bioinformatics/btp324 . doi: 10.1093/bioinformatics/btp324
22	McCouch S R， Chen X， Panaud O， et al. Microsatellite marker development， mapping and applications in rice genetics and breeding［J］. Plant Mol Biol， 1997， 35（1/2）： 89-99.
23	Li D M， Sun M M， Han Y P， et al. Identification of QTL underlying soluble pigment content in soybean stems related to resistance to soybean white mold （Sclerotinia sclerotiorum）［J］. Euphytica， 2010， 172（1）： 49-57. DOI：10.1007/s10681-009-0036-z . doi: 10.1007/s10681-009-0036-z
24	Sun D S， Li W B， Zhang Z C， et al. Quantitative trait loci analysis for the developmental behavior of soybean （Glycine max L. Merr.）［J］. Theor Appl Genet， 2006， 112（4）： 665-673. DOI：10.1007/s00122-005-0169-y . doi: 10.1007/s00122-005-0169-y
25	Kato S， Sayama T， Fujii K， et al. A major and stable QTL associated with seed weight in soybean across multiple environments and genetic backgrounds［J］. Theor Appl Genet， 2014， 127（6）： 1365-1374. DOI：10.1007/s00122-014-2304-0 . doi: 10.1007/s00122-014-2304-0
26	Vieira A J D， de Oliveira D A， Soares T C B， et al. Use of the QTL approach to the study of soybean trait relationships in two populations of recombinant inbred lines at the F₇ and F₈ generations［J］. Braz J Plant Physiol， 2006， 18（2）： 281-290. DOI：10.1590/s1677-04202006000200004 . doi: 10.1590/s1677-04202006000200004
27	Funatsuki H， Kawaguchi K， Matsuba S， et al. Mapping of QTL associated with chilling tolerance during reproductive growth in soybean［J］. Theor Appl Genet， 2005， 111（5）： 851-861. DOI：10.1007/s00122-005-0007-2 . doi: 10.1007/s00122-005-0007-2
28	Kuroda Y， Kaga A， Tomooka N， et al. QTL affecting fitness of hybrids between wild and cultivated soybeans in experimental fields［J］. Ecol Evol， 2013， 3（7）： 2150-2168. DOI：10.1002/ece3.606 . doi: 10.1002/ece3.606
29	Orf J H， Chase K， Jarvik T， et al. Genetics of soybean agronomic traits［J］. Crop Science， 1999， 39（6）： 1642-1651. DOI：10.2135/cropsci1999.3961642x . doi: 10.2135/cropsci1999.3961642x
30	Hacisalihoglu G， Burton A L， Gustin J L， et al. Quantitative trait loci associated with soybean seed weight and composition under different phosphorus levels［J］. J Integr Plant Biol， 2018， 60（3）： 232-241. DOI：10.1111/jipb.12612 . doi: 10.1111/jipb.12612
31	Yang K， Moon J K， Jeong N， et al. Novel major quantitative trait loci regulating the content of isoflavone in soybean seeds［J］. Genes Genom， 2011， 33（6）： 685-692. DOI：10.1007/s13258-011-0043-z . doi: 10.1007/s13258-011-0043-z
32	Rossi M E， Orf J H， Liu L J， et al. Genetic basis of soybean adaptation to North American vs. Asian mega-environments in two independent populations from Canadian × Chinese crosses［J］. Theor Appl Genet， 2013， 126（7）： 1809-1823. DOI：10.1007/s00122-013-2094-9 . doi: 10.1007/s00122-013-2094-9
33	Eskandari M， Cober E R， Rajcan I. Genetic control of soybean seed oil： II. QTL and genes that increase oil concentration without decreasing protein or with increased seed yield［J］. Theor Appl Genet， 2013， 126（6）： 1677-1687. DOI：10.1007/s00122-013-2083-z . doi: 10.1007/s00122-013-2083-z
34	Yan L， Li Y H， Yang C Y， et al. Identification and validation of an over-dominant QTL controlling soybean seed weight using populations derived from Glycine max × Glycine soja ［J］. Plant Breed， 2014， 133（5）： 632-637. DOI：10.1111/pbr.12197 . doi: 10.1111/pbr.12197
35	Teng W， Han Y， Du Y， et al. QTL analyses of seed weight during the development of soybean （Glycine max L. Merr.）［J］. Heredity， 2009， 102（4）： 372-380. DOI：10.1038/hdy.2008.108 . doi: 10.1038/hdy.2008.108
36	Jiang B， Liu W R， Xie D S， et al. High-density genetic map construction and gene mapping of pericarp color in wax gourd using specific-locus amplified fragment （SLAF） sequencing［J］. BMC Genomics， 2015， 16： 1035. DOI：10.1186/s12864-015-2220-y . doi: 10.1186/s12864-015-2220-y
37	Shang J L， Li N， Li N N， et al. Construction of a high-density genetic map for watermelon （Citrullus lanatus L.） based on large-scale SNP discovery by specific length amplified fragment sequencing （SLAF-seq）［J］. Sci Hortic， 2016， 203： 38-46. DOI：10.1016/j.scienta.2016.03.007 . doi: 10.1016/j.scienta.2016.03.007
38	Keim P， Diers B W， Olson T C， et al. RFLP mapping in soybean： association between marker loci and variation in quantitative traits［J］. Genetics， 1990， 126（3）： 735-742. DOI：10.1093/genetics/126.3.735 . doi: 10.1093/genetics/126.3.735
39	朱明月. 利用回交导入系群体定位大豆蛋白质、脂肪含量及脂肪酸含量QTL［D］. 北京：中国农业科学院， 2017.
40	Zhang Y W， Li W， Lin Y H， et al. Construction of a high-density genetic map and mapping of QTLs for soybean （Glycine max） agronomic and seed quality traits by specific length amplified fragment sequencing［J］. BMC Genomics， 2018， 19（1）： 641. DOI：10.1186/s12864-018-5035-9 . doi: 10.1186/s12864-018-5035-9
41	Ma Y J， Ma W Y， Hu D Z， et al. QTL mapping for protein and sulfur-containing amino acid contents using a high-density Bin-map in soybean （Glycine max L. merr.）［J］. J Agric Food Chem， 2019， 67（44）： 12313-12321. DOI：10.1021/acs.jafc.9b04497 . doi: 10.1021/acs.jafc.9b04497
42	Fulton T M， Beck-Bunn T， Emmatty D， et al. QTL analysis of an advanced backcross of Lycopersicon peruvianum to the cultivated tomato and comparisons with QTLs found in other wild species［J］. Theor Appl Genet， 1997， 95（5/6）： 881-894. DOI：10.1007/s001220050639 . doi: 10.1007/s001220050639

性状 Trait	年份 Year	地点 Site	亲本Parents		显著性Significance
性状 Trait	年份 Year	地点 Site	东农42 Dongnong 42	东农50 Dongnong 50	显著性Significance
四粒荚数 NFSP	2019	XY	9.80	40.57	**
		AC	11.11	39.50	**
		HL	10.80	33.14	ns
		平均值 Mean	10.57	37.74	**
	2020	XY	4.70	31.00	**
		AC	9.30	22.43	**
		HL	6.10	46.83	**
		平均值 Mean	6.70	33.42	**
单株荚数 NPPP	2019	XY	43.60	83.71	**
		AC	63.33	80.50	ns
		HL	71.20	73.14	ns
		平均值 Mean	59.38	79.12	**
	2020	XY	40.50	76.64	**
		AC	49.60	51.29	ns
		HL	68.20	97.25	*
		平均值 Mean	52.77	75.06	**
单株粒重 /g SWPP	2019	XY	14.48	11.08	ns
		AC	30.02	12.05	**
		HL	29.44	11.91	**
		平均值 Mean	24.65	11.68	**
	2020	XY	15.71	13.50	ns
		AC	23.97	8.03	**
		HL	30.35	18.39	**
		平均值 Mean	23.34	13.31	**
百粒重 /g HSW	2019	XY	17.56	7.33	**
		AC	19.54	6.36	**
		HL	19.80	9.23	**
		平均值 Mean	18.97	7.64	**
	2020	XY	18.68	7.22	**
		AC	19.69	6.28	**
		HL	20.83	8.29	**
		平均值 Mean	19.73	7.27	**

性状 Trait	年份 Year	地点 Site	平均值±标准偏差 Mean ± SD	方差 Variance	峰度 Kurtosis	偏度 Skewness	范围 Range	变异系数 /% Coefficient of variation
四粒荚数 NFSP	2019	XY	13.18±7.88	62.03	6.96	1.87	1.67~58.00	59.79
		AC	17.62±9.50	90.28	5.25	1.33	1.40~72.00	53.92
		HL	13.76±8.40	70.58	1.10	0.96	0.60~46.60	61.05
	2020	XY	9.65±5.39	29.08	4.08	1.28	0.80~37.80	55.85
		AC	15.38±7.31	53.49	0.61	0.59	1.40~39.80	47.53
		HL	15.30±10.13	102.71	1.64	1.30	0.20~50.00	66.21
单株荚数 NPPP	2019	XY	48.24±15.04	226.30	1.76	0.75	13.20~106.33	31.18
		AC	60.92±19.70	388.02	11.53	2.13	15.80~191.00	32.34
		HL	55.70±19.08	364.18	-0.17	0.16	14.25~114.20	34.25
	2020	XY	44.60±11.58	134.05	1.37	0.73	16.00~93.40	25.96
		AC	55.46±15.74	247.66	3.42	1.51	28.40~122.00	28.38
		HL	65.51±31.13	968.94	11.30	2.45	11.60~267.00	47.52
单株粒重 /g SWPP	2019	XY	12.38±4.31	18.56	0.06	0.27	1.70~24.08	34.81
		AC	18.15±5.95	35.39	0.76	0.37	3.10~40.79	32.78
		HL	15.98±6.75	45.54	-0.09	0.38	2.96~34.65	42.24
	2020	XY	13.01±3.36	11.30	0.23	0.48	4.61~21.89	25.83
		AC	17.63±5.45	29.65	3.18	1.27	7.90~41.54	30.91
		HL	21.22±9.78	95.67	4.93	1.43	1.74~74.00	46.09
百粒重 /g HSW	2019	XY	13.84±2.49	6.20	1.11	0.33	6.44~23.15	17.99
		AC	14.01±2.66	7.05	1.12	0.09	5.41~22.01	18.99
		HL	14.82±2.55	6.49	0.25	0.08	8.11~21.57	17.21
	2020	XY	13.86±2.73	7.47	0.74	0.39	6.99~23.13	19.70
		AC	13.93±2.77	7.70	-0.15	-0.02	5.79~21.56	19.89
		HL	15.66±2.91	8.45	0.00	0.23	7.66~23.61	18.58

地点 Site	性状 Trait	2019				2020
地点 Site	性状 Trait	四粒荚数 NFSP	单株荚数 NPPP	单株粒重/g SWPP	百粒重/g HSW	四粒荚数 NFSP	单株荚数 NPPP	单株粒重/g SWPP	百粒重/g HSW
XY	四粒荚数NFSP	1				1
	单株荚数NPPP	0.634**	1			0.418**	1
	单株粒重SWPP /g	0.493**	0.719**	1		0.402**	0.663**	1
	百粒重HSW /g	-0.162*	-0.255**	0.327**	1	-0.147	-0.328**	0.378**	1
AC	四粒荚数NFSP	1				1
	单株荚数NPPP	0.530**	1			0.330**	1
	单株粒重SWPP /g	0.495**	0.570**	1		0.387**	0.594**	1
	百粒重HSW /g	-0.018	-0.253**	0.443**	1	-0.009	-0.355**	0.359**	1
HL	四粒荚数NFSP	1				1
	单株荚数NPPP	0.409**	1			0.409**	1
	单株粒重SWPP /g	0.524**	0.794**	1		0.548**	0.857**	1
	百粒重HSW /g	0.121	-0.106	0.368**	1	-0.006	-0.206**	0.189*	1

样品 Sample	Q30 /%	GC含量 /% GC percentage	平均覆盖深度 Average coverage depth	覆盖率 Coverage ratio /%
样品 Sample	Q30 /%	GC含量 /% GC percentage	平均覆盖深度 Average coverage depth	1×	5×	10×
东农42 Dongnong 42	93.36	34.84	20.00	95.46	93.75	88.05
东农50 Dongnong 50	91.77	34.70	20.00	95.00	92.69	85.68
家系 Population	93.16	34.72	3.18	79.71	25.40	3.99

连锁群 Linkage group	总标记数 Total bin marker	遗传距离 /cM Total distance	标记间距离 /cM Average distance	最大间隔 /cM Max gap	间隔<5 cM /% Gaps< 5 cM
LG1	381	126.63	0.33	12.48	98.95
LG2	431	173.81	0.40	11.99	99.30
LG3	334	196.78	0.59	13.99	98.20
LG4	277	136.09	0.49	8.83	98.91
LG5	233	179.06	0.77	11.51	99.14
LG6	325	138.77	0.43	10.59	97.84
LG7	417	143.21	0.34	11.99	99.28
LG8	274	179.07	0.65	10.59	98.17
LG9	338	138.46	0.41	8.41	98.81
LG10	370	130.71	0.35	5.65	99.46
LG11	200	111.03	0.56	16.74	97.49
LG12	272	128.93	0.47	6.98	99.26
LG13	330	137.19	0.42	10.59	98.78
LG14	339	127.41	0.38	15.60	98.82
LG15	385	113.35	0.29	6.80	99.22
LG16	195	120.82	0.62	8.83	97.42
LG17	386	113.41	0.29	7.19	99.74
LG18	200	114.35	0.57	16.17	98.49
LG19	288	130.91	0.45	13.99	97.91
LG20	252	99.16	0.39	9.70	98.80
总计	6227	2739.15	0.44	16.74	98.70
