甘蓝型油菜杂交种圣光168父本根肿病抗性的遗传改良与应用

doi:10.19802/j.issn.1007-9084.2021260

摘要/Abstract

摘要：

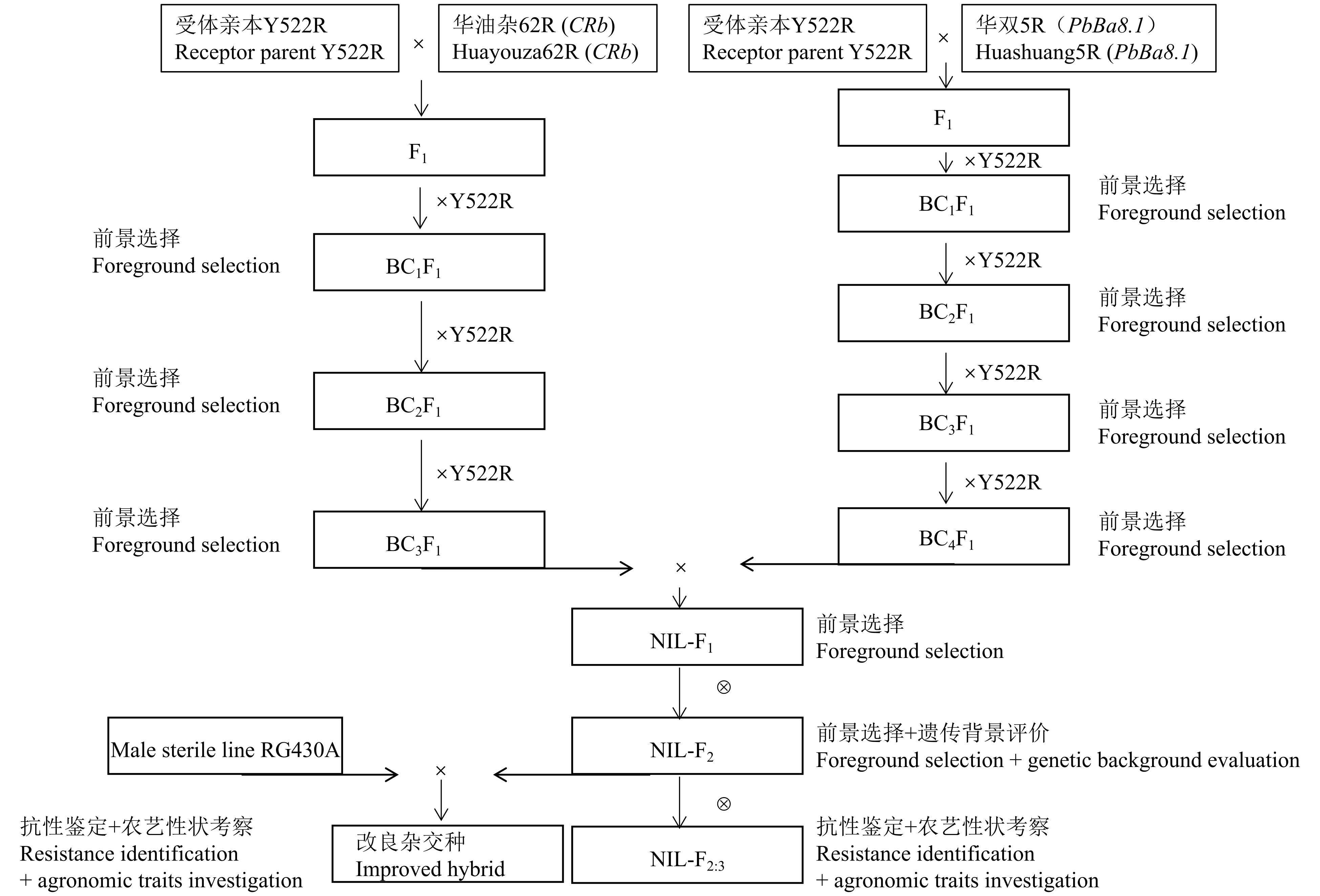

为培育优良的抗根肿病油菜品种，以华双5R和华油杂62R（分别携带抗根肿病位点PbBa8.1和CRb）为供体亲本，以圣光168的父本Y522R为轮回亲本，通过回交与分子辅助育种相结合，将PbBa8.1和CRb导入到Y522R中，选育出遗传背景回复率均达90%以上，且分别携带PbBa8.1、CRb和PbBa8.1+CRb抗病位点的近等基因系Y522R ^PbBa8.1 、Y522R ^CRb 、Y522R ^PbBa8.1⁺^CRb，并在此基础上与圣光168母本RG430A配制了具有根肿病抗性的改良杂交种圣光168CR ^PbBa8.1 、圣光168CR ^CRb 和圣光168CR ^PbBa8.1⁺^CRb。利用我国根肿菌4号优势生理小种，对改良株系及杂交种进行苗期根肿病抗性鉴定，结果表明：Y522R ^PbBa8.1⁺^CRb 和Y522R ^CRb 改良株系及其改良杂交种圣光168CR ^CRb 和圣光168CR ^PbBa8.1⁺^CRb 对4号生理小种具有免疫抗性；Y522R ^PbBa8.1 改良株系及其改良杂交种圣光168CR ^PbBa8.1 对4号生理小种表现为感病，但显著低于对照Y522R及圣光168。农艺性状考察结果表明，Y522R改良株系及其改良杂交种的开花期、株高、有效分枝数、角果长、每角果粒数和千粒重都与对照无显著性差异，说明这些改良杂交种可作为重要的抗根肿病油菜资源。

关键词: 甘蓝型油菜, 根肿病, PbBa8.1抗病位点, CRb抗病位点, 抗病育种

Abstract:

To improve rapeseed resistance to clubroot, Huashuang 5R （carrying PbBa8.1 locus） and Huayouza 62R （carrying CRb locus） were used as donor parents for transferring resistant genes into Y522R. The strategy was combined with successive backcross and marker-assisted selection. By the process, 3 near isogenic lines Y522R ^PbBa8.1, Y522R ^CRb and Y522R ^PbBa8.1⁺^CRb （containing PBba8.1, CRb, and PbBa8.1+CRb respectively） were obtained, with more than 90% genetic background recover rate. Subsequently, 3 clubroot resistant new hybrids Shengguang 168CR ^PbBa8.1, Shengguang 168CR ^CRb and Shengguang 168CR ^PbBa8.1⁺^CRb were derived from these near isogenic lines and RG430A （female parent of Shengguang 168）. The clubroot resistance of the above lines （as Y522R ^PbBa8.1, Y522R ^CRb, Y522R ^PbBa8.1⁺^CRb,Shengguang 168CR ^PbBa8.1, Shengguang 168CR ^CRb and Shengguang 168CR ^PbBa8.1⁺^CRb ） was identified by using Race 4 （the dominant physiological race in China）. Results showed that Y522R ^CRb, Y522R ^PbBa8.1⁺^CRb and their hybrids （Shengguang 168CR ^CRb and Shengguang 168CR ^PbBa8.1⁺^CRb ） had immunity to Race 4. Although Y522R ^PbBa8.1 and hybrid Shengguang 168CR ^PbBa8.1 were susceptible to Race 4, their levels of the resistance were still significantly higher than those of the control （Y522R and Shengguang 168）. Evaluation of agronomic traits showed that no significant differences were observed between the improved lines and Y522R, neither between the improved hybrids and Shengguang 168. The traits included flowering days, plant height, effective branches, silique length, seeds per silique and thousand seeds weight. Thus laid an important foundation for cultivation of excellent rape varieties resistant to clubroot.

Key words: Brassica napus L., clubroot disease, PbBa8.1 resistance locus, CRb resistance locus, resistant breeding

中图分类号:

S565.4

熊梅, 杨光圣, 洪登峰, 王朝阳. 甘蓝型油菜杂交种圣光168父本根肿病抗性的遗传改良与应用[J]. 中国油料作物学报, 2022, 44(6): 1182-1189.

Mei XIONG, Guang-sheng YANG, Deng-feng HONG, Zhao-yang WANG. Genetic improvement and application of resistance to clubroot in male parent of Brassica napus hybrid Shengguang 168[J]. CHINESE JOURNAL OF OIL CROP SCIENCES, 2022, 44(6): 1182-1189.

图/表 11

图1

表1

图2

表2

表3

表4

图3

表5

图4

表6

表7

参考文献 23

1	Ludwig-Müller J， Prinsen E， Rolfe S A， et al. Metabolism and plant hormone action during clubroot disease［J］. J Plant Growth Regul， 2009， 28（3）： 229-244. DOI：10.1007/s00344-009-9089-4 . doi: 10.1007/s00344-009-9089-4
2	Wallenhammar A C. Prevalence of Plasmodiophora brassicae in a spring oilseed rape growing area in central Sweden and factors influencing soil infestation levels［J］. Plant Pathol， 1996， 45（4）： 710-719. DOI：10.1046/j.1365-3059.1996.d01-173.x . doi: 10.1046/j.1365-3059.1996.d01-173.x
3	Dixon G R. Plasmodiophora brassicae in its environment［J］. J Plant Growth Regul， 2009， 28（3）： 212-228. DOI：10.1007/s00344-009-9098-3 . doi: 10.1007/s00344-009-9098-3
4	江莹芬，战宗祥，朴钟云，等. 油菜抗根肿病资源创新与利用的研究进展与展望［J］. 作物学报， 2018， 44（11）： 1592-1599. DOI：10.3724/SP.J.1006.2018.01592 . doi: 10.3724/SP.J.1006.2018.01592
5	Neik T X， Barbetti M J， Batley J. Current status and challenges in identifying disease resistance genes in Brassica napus ［J］. Front Plant Sci， 2017， 8： 1788. DOI：10.3389/fpls.2017.01788 . doi: 10.3389/fpls.2017.01788
6	王燕燕，杨植全，杨庆勇，等. 油菜根肿病抗性遗传改良与应用［J］. 华中农业大学学报， 2021， 40（2）： 1-5. DOI：10.13300/j.cnki.hnlkxb.2021.02.001 . doi: 10.13300/j.cnki.hnlkxb.2021.02.001
7	Matsumoto E， Yasui C K， Ohi M， et al. Linkage analysis of RFLP markers for clubroot resistance and pigmentation in Chinese cabbage （Brassica rapa ssp. pekinensis）［J］. Euphytica， 1998， 104（2）： 79-86. DOI：10.1023/A： 1018370418201 . doi: 10.1023/A： 1018370418201
8	Hirai M， Harada T， Kubo N， et al. A novel locus for clubroot resistance in Brassica rapa and its linkage markers［J］. Theor Appl Genet， 2004， 108（4）： 639-643. DOI：10.1007/s00122-003-1475-x . doi: 10.1007/s00122-003-1475-x
9	Piao Z Y， Deng Y Q， Choi S R， et al. SCAR and CAPS mapping of CRb， a gene conferring resistance to Plasmodiophora brassicae in Chinese cabbage （Brassica rapa ssp. pekinensis）［J］. Theor Appl Genet， 2004， 108（8）： 1458-1465. DOI：10.1007/s00122-003-1577-5 . doi: 10.1007/s00122-003-1577-5
10	Sakamoto K， Saito A， Hayashida N， et al. Mapping of isolate-specific QTLs for clubroot resistance in Chinese cabbage （Brassica rapa L. ssp. pekinensis）［J］. Theor Appl Genet， 2008， 117（5）： 759-767. DOI：10.1007/s00122-008-0817-0 . doi: 10.1007/s00122-008-0817-0
11	Chen J J， Jing J， Zhan Z X， et al. Identification of novel QTLs for isolate-specific partial resistance to Plasmodiophora brassicae in Brassica rapa ［J］. PLoS One， 2013， 8（12）： e85307. DOI：10.1371/journal.pone.0085307 . doi: 10.1371/journal.pone.0085307
12	Chu M G， Song T， Falk K C， et al. Fine mapping of Rcr1 and analyses of its effect on transcriptome patterns during infection by Plasmodiophora brassicae ［J］. BMC Genom， 2014， 15： 1166. DOI：10.1186/1471-2164-15-1166 . doi: 10.1186/1471-2164-15-1166
13	Yu F Q， Zhang X G， Huang Z， et al. Identification of genome-wide variants and discovery of variants associated with Brassica rapa clubroot resistance gene Rcr1 through bulked segregant RNA sequencing［J］. PLoS One， 2016， 11（4）： e0153218. DOI：10.1371/journal.pone.0153218 . doi: 10.1371/journal.pone.0153218
14	Huang Z， Peng G， Liu X J， et al. Fine mapping of a clubroot resistance gene in Chinese cabbage using SNP markers identified from bulked segregant RNA sequencing［J］. Front Plant Sci， 2017， 8： 1448. DOI：10.3389/fpls.2017.01448 . doi: 10.3389/fpls.2017.01448
15	Yu F Q， Zhang X G， Peng G， et al. Genotyping-by-sequencing reveals three QTL for clubroot resistance to six pathotypes of Plasmodiophora brassicae in Brassica rapa ［J］. Sci Rep， 2017， 7（1）： 4516. DOI：10.1038/s41598-017-04903-2 . doi: 10.1038/s41598-017-04903-2
16	Pang W X， Fu P Y， Li X N， et al. Identification and mapping of the clubroot resistance gene CRd in Chinese cabbage （Brassica rapa ssp. pekinensis）［J］. Front Plant Sci， 2018， 9： 653. DOI：10.3389/fpls.2018.00653 . doi: 10.3389/fpls.2018.00653
17	战宗祥，江莹芬，朱紫媛，等. 与位点PbBa8.1紧密连锁分子标记的开发及甘蓝型油菜根肿病抗性育种［J］. 中国油料作物学报， 2015， 37（6）： 766-771. DOI：10.7505/j.issn.1007-9084.2015.06.005 . doi: 10.7505/j.issn.1007-9084.2015.06.005
18	李倩， Shah Nadil，周元委，等. 抗根肿病甘蓝型油菜新品种华油杂62R的选育［J］. 作物学报， 2021， 47（2）： 210-223. DOI：10.3724/SP.J.1006.2021.04086 . doi: 10.3724/SP.J.1006.2021.04086
19	Shah N， Li Q， Xu Q， et al. CRb and PbBa8.1 synergically increases resistant genes expression upon infection of Plasmodiophora brassicae in Brassica napus ［J］. Genes， 2020， 11（2）： 202. DOI：10.3390/genes11020202 . doi: 10.3390/genes11020202
20	汪春. 安徽油菜根肿病菌生理小种鉴定及品种抗病性评价［D］. 合肥：安徽农业大学， 2014.
21	Chai A L， Xie X W， Shi Y X， et al. Research status of clubroot （Plasmodiophora brassicae） on cruciferous crops in China［J］. Can J Plant Pathol， 2014， 36（sup1）： 142-153. DOI：10.1080/07060661.2013.868829 . doi: 10.1080/07060661.2013.868829
22	郭清云，汪波，蒯婕，等. 油菜感抗品种混播对根肿病防控效果的影响［J］. 作物学报， 2020， 46（5）： 725-733. DOI：10.3724/SP.J.1006.2020.94145 . doi: 10.3724/SP.J.1006.2020.94145
23	李宁. 寄主多样性条件下小麦白粉病发生及其病原菌群体遗传结构的研究［D］. 北京：中国农业科学院， 2011.

世代 Generation	中选单株数 Selected plants	基因型 Genotype	世代 Generation	中选单株数 Selected plants	基因型 Genotype
BC₁F₁	12	PbBa8.1 pbba8.1	BC₁F₁	11	CRbcrb
BC₂F₁	13	PbBa8.1 pbba8.1	BC₂F₁	12	CRbcrb
BC₃F₁	8	PbBa8.1 pbba8.1	BC₃F₁	9	CRbcrb
BC₄F₁	6	PbBa8.1 pbba8.1	BC₄F₁	0	CRbcrb
NIL-F₁	5	PbBa8.1pbba8.1CRbcrb	NIL-F₂	6	PbBa8.1PbBa8.1
NIL-F₂	5	CRbCRb	NIL-F₂	5	PbBa8.1PbBa8.1CRbCRb

样品编号 Samples ID	基因型 Genotype	背景回复率 Background recovery rate	样品编号 Samples ID	基因型 Genotype	背景回复率 Background recovery rate
XM1	PbBa8.1PbBa8.1	89.12%	XM9	CRbCRb	89.78%
XM2	PbBa8.1PbBa8.1	85.24%	XM10	CRbCRb	91.22%
XM3	PbBa8.1PbBa8.1	86.63%	XM11	CRbCRb	90.39%
XM4	PbBa8.1PbBa8.1	93.43%	XM12	PbBa8.1PbBa8.1CRbCRb	80.38%
XM5	PbBa8.1PbBa8.1	89.32%	XM13	PbBa8.1PbBa8.1CRbCRb	83.59%
XM6	CRbCRb	90.10%	XM14	PbBa8.1PbBa8.1CRbCRb	96.70%
XM7	CRbCRb	83.11%	XM15	PbBa8.1PbBa8.1CRbCRb	88.98%
XM8	CRbCRb	91.06%	XM16	PbBa8.1PbBa8.1CRbCRb	88.36%

材料 Material	鉴定株数 Identified plants	感病株数 Infected plants	病情指数 Disease index
Y522R	126	124 A	90 A
Y522R ^PbBa8.1	116	73 B	21 B
Y522R ^CRb	120	0 C	0 C
Y522R ^PbBa8.1⁺^CRb	120	0 C	0 C

材料 Material	鉴定株数 Identified plants	感病株数 Infected plants	病情指数 Disease index
圣光168	36	36 A	99 A
圣光168CR ^PbBa8.1	36	26 B	54 B
圣光168CR ^CRb	36	0 C	0 C
圣光168CR ^PbBa8.1⁺^CRb	36	0 C	0 C

材料 Mateiral	地点 Site	株高 Plant height /cm	有效分枝数 Effective branch	角果长度 Silique length /cm	每角果粒数 Seeds per silique	千粒重 1000-seed weight /g
Y522R	武汉 Wuhan	168.5±5.9a	6.8±0.5a	6.6±0.1a	25.0±0.6a	3.6±0.1a
Y522R ^PbBa8.1		167.3±6.0a	7.1±0.4a	6.7±0.1a	26.8±0.9a	3.5±0.1a
Y522R ^CRb		169.9±11.3a	7.1±0.5a	6.8±0.2a	26.0±1.2a	3.5±0.1a
Y522R ^PbBa8.1⁺^CRb		172.5±6.4a	7.3±0.1a	6.8±0.2a	26.7±0.4a	3.4±0.2a
Y522R	江陵 Jiangling	135.5±8.7a	5.5±0.7a	6.8±0.1a	31.5±0.2a	3.3±0.2a
Y522R ^PbBa8.1		141.2±10.0a	5.6±1.0a	6.9±0.1a	30.5±0.1a	3.4±0.2a
Y522R ^CRb		138.1±8.0a	5.1±0.3a	6.8±0.3a	27.7±0.4a	3.8±0.1a
Y522R ^PbBa8.1⁺^CRb		141.1±8.7a	5.4±0.8a	6.9±0.1a	32.1±0.2a	3.4±0.2a
